Graph-Tune 1.0 is a private project & experiment, started year 2021 and is ongoing as you read this..

​

Will install an electrical driven “Turbo” / compressor to a motorcycle. Bike will be dyno-tested and results will regardless outcome shared on the Graph-Tune community.

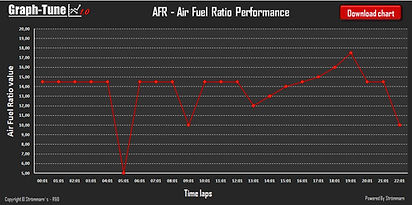

Create a AFR-data logging solution (Air Fuel Ratio) with probably the fastest responding wideband solution on the market today. The solution will make it possible to connect the computer to the motorcycle in this case and log the exhaust values. The values will be visualized in a graph for further analysis. This will be a perfect instrument for further optimizations of any engine.



At the same time the bike will be rebuild in the CaféRacer style.



This website is also one of the tasks in this project and the idea is to make a community with help of the FORUM and the BLOG, make us poeple share knowledge about "e-boosters" and AFR-data logging solutions. I will share my own solutions regarding AFR-data logging and visualization of data through instructions, parts needed and FREE downloads of needed files and software. The e-booster experiment will be shared as well regardless the outcome ofcourse..

​

Let´s share knowledge and build together.. join our FORUM.

​

Follow the BLOG!




Project features:

​

Increased engine power with 10-30% ?

​

Reduced the fuel consumption with 3-10% ?

​

Effect the Environmental quality by reducing - LCD, HC, NOXJ by 30% or less ?

​

Protect the engine by reducing the wear due to deposits and correct AFR-values ?

​

Will make it possible for you to configure the best AFR-mix for your specific needs without guessing..

​

Will concept work on all internal combustion engines ?



Let's tune the lawnmower..!!=)

​

Disclaimer.
"Graph-Tune 1.0" disclaims all responsibility of all content, links, downloads, shared info. and solutions published on this website, forum and blog etc. Material shared is not guaranteed to be correct and precise and doesn´t need to be verified in such way because it´s based on many different resources and experiments that´s not verified to be fully correct and this is unofficial material. The use of material from this resources is on your own risk and remember you should always verify everything by yourself before even thinking doing something similar. Be aware of products in this material may be used in a incorrect-and, or inappropriate way that could result in damaged products and loss of product warranty from respective manufacturer. Electric wiring shall always be done by a qualified professional electrician.. Don´t do this at home!
